Planet Technology XGSW-28040

Descripción

Cost-effective 10Gbps Uplink Capacitated Managed Switch Solution for SMB
The XGSW-28040 is PLANET’s first Layer 2 IPv6 / IPv4 management Gigabit switch built in with four 10Gbps uplink slots to greatly support SMB network achieve 10Gbps high performance in a cost-effective way because 10GbE interface usually could be available in Layer 3 Switch but Layer 3 Switch could be too expensive to SMB. The four 10Gbps SFP+ interfaces in the XGSW-28040 is in the same size as commonly seen Gigabit SFP slot and also is the main standard for 10Gbps transceiver. The XGSW-28040 can work with PLANET ENW-9800 Dual 10Gbps SFP+ PCI Express Server Adapter series or the third brand 10Gbps server adapter to help SMB build up 10Gbps Ethernet network providing 10Gbps NAS (Network Attached Storage) or heavy transmission of video streaming service at affordable price. Each of the SFP+ slot supports Dual-Speed, 10GBase-SR/LR or 1000Base-SX/LX; that means, the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

IPv6 Managed Gigabit Switch Solution for SMB
Nowadays, lots of electronic products or mobile devices can access to the Internet, which means the need of IP Address increases. However, the current IPv4 network infrastructure is not capable enough to provide IP Address to each single users / Clients. The situation forces the ISP to build up the IPv6 (Internet Protocol version 6) network infrastructure speedily. To fulfill the demand, PLANET releases the IPv6 management Gigabit Ethernet Switch, the XGSW-28040 which can work with original IPv4 network structure and also support IPv6 network structure in the future. With easy and friendly management interfaces and plenty of management functions included, the XGSW-28040 is the best choice for ISP to build the IPv6 FTTx edge service and for SMB to connect with the IPv6 network.

High Performance

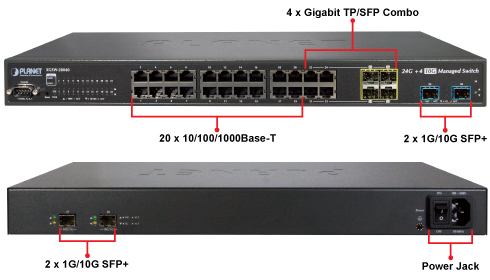

The XGSW-28040 provides 24 10/100/1000Mbps Gigabit Ethernet ports with 4 shared 100/1000X SFP slots plus 4 10G/1G SFP+ slots. It boasts high performance architecture of switch that is capable for providing the non-blocking switch fabric and wire-speed throughput as high as 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

Robust Layer 2 Features
The XGSW-28040 can be programmed for advanced switch management functions such as dynamic Port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. In addition, it provides 802.1Q Tagged VLAN, and allows maximally up to 255 VLAN groups. Via aggregation of supporting ports, the XGSW-28040 allows the operation of a high-speed trunk combining multiple ports. It enables maximum up to 14 groups of 8 ports for trunking, and supports fail-over as well.

Excellent Traffic Control
The XGSW-28040 is loaded with powerful traffic management and QoS features to enhance connection services by SMB. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limiting that are particular useful for multi-tenant unit, multi business unit, Telco, or Network Service Provide applications. It also empowers the enterprises to take full advantages of the limited network resources and guarantees the best performance in VoIP and Video conferencing transmission.

Efficient Management
For efficient management, the XGSW-28040 Managed Ethernet Switch is equipped with console, WEB and SNMP management interfaces. With the built-in Web-based management interface, the XGSW-28040 offers an easy-to-use, platform-independent management and configuration facility. It also supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the XGSW-28040 can be accessed via Telnet and the console port. Moreover, the XGSW-28040 enables secure remote management by supporting SNMP v3 connection which encrypts the packet content at each session.

Powerful Security
The XGSW-28040 offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises of 802.1x Port-Based and MAC-Based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Flexibility and Extension Solution
The four mini-GBIC SFP slots built in the XGSW-28040 support Dual-Speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, that means, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters (Multi-Mode fiber) up to above 10/50/70/120 kilometers (Single-Mode fiber or WDM fiber). They are well suited for applications within the distribution SMB.

Excellent Solution for Core / Data Center Security and QoS Switch
The XGSW-28040 performs 128 Gigabits per second non-blocking switch fabric so it can easily provide a local 10Gbps high bandwidth Ethernet network for backbone of your department. With the four built-in SFP+ ports, the XGSW-28040 provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.

By means of improving the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-installation features, the XGSW-28040 offers up to 10Gbps data exchange speed via Optical Fiber interface and the transmission distance can extend to 10km. The XGSW-28040 is the ideal solution for SMB to build redundant connection and establish high bandwidth for server farm.

HARDWARE SPECIFICATION
Copper Ports 24 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports

SFP/mini-GBIC Slots
4 100/1000Base-X SFP interfaces, shared with Port-21 to Port-24
Compatible with 100Base-FX SFP

Console 1 x RS-232 DB9 serial port (115200, 8, N, 1)
Switch Architecture Store-and-Forward
Switch Fabric 128Gbps / non-blocking
Throughput @ 64Kbytes 95Mpps@64Bytes
Address Table 16K entries, automatic source address learning and ageing
Share Data Buffer 1392 kilobytes
Jumbo Frame 10K

Flow Control
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex

Reset Button
< 5 sec: System reboot > 5 sec: Factory Default

LED
Power, System, FAN 1 & 2 Alert,
1000 Link/Act and 10/100 Link/Act for per Gigabit port,
10G Link/Act and 1G Link/Act for per 10G port

Dimension (W x D x H) 440 x 200 x 44.5 mm, 1U height
Weight 2840g
Power Input AC 100~240V, 50/60Hz
Power Consumption Max 45.3 watts / 154.7BTU
ESD Protection 6KV DC

LAYER 2 FUNCTION
Basic Management Interfaces Console, Telnet, Web Browser, SNMP v1, v2c
Secure Management Interfaces SSH, SSL, SNMP v3

Port Configuration
Port disable / enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable

Port Status
Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, and trunk status

Port Mirroring
TX / RX / Both
Many-to-1 monitor

VLAN
802.1Q Tagged Based VLAN, up to 256 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-Based VLAN
Protocol-Based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 256 VLAN groups, out of 4094 VLAN IDs

Link Aggregation
IEEE 802.3ad LACP / Static Trunk
Support 14 groups of 8-Port trunk support

QoS
Traffic classification based, Strict priority and WRR
8-Level priority for switching
　- Port Number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP/TOS field in IP Packet

IGMP Snooping
IGMP (v1/v2/v3) Snooping, up to 255 multicast Groups
IGMP Querier mode support

MLD Snooping
MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support

Access Control List
IP-Based ACL / MAC-Based ACL
Up to 256 entries

SNMP MIBs
RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC-3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB

STANDARDS CONFORMANCE
Standards Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1s Multiple spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2

Regulation Compliance FCC Part 15 Class A, CE
Safety UL, cUL

ENVIRONMENT
Operating
Temperature: 0 ~ 50 Degree C
Relative Humidity: 20 ~ 95% (non-condensing)

Storage
Temperature: -20 ~ 70 Degree C
Relative Humidity: 20 ~ 95% (non-condensing).

ACCESORIES
MTB-LR SFP+ Port 10GBase-LR mini-GBIC module (Single mode / 1310nm / max. 10km)
MTB-SR SFP+ Port 10GBase-SR mini-GBIC Module (Multi-mode / 850nm / max. 300m)
