Planet Technology XGS3-42000R

2.124,00  2.124,00

4-Slot Layer 3 IPv6/IPv4 Routing Chassis Switch

SKU: CCO0001 Categoría:


The PLANET XGS3-42000R Core-Layer Routing Switch is specially designed for large network applications such as Enterprise, Campus, Community, ISP or Data Center network where flexible configuration, large capacity, high-density, high-reliability and advanced traffic management are required.

600X116 Top Banner

The XGS3-42000R is a High-Density Chassis Ethernet Switch built with 4 module slots and redundant power supply. It provides great porting flexibility for network deployment by offering various and combinable management modules and standard interfaces. For instance, one management module can be collaborated with three standard modules, or two management modules work with two standard modules to perform mutually system backup. Within the 6U height, single chassis, the maximum configuration can be:
 • 168-Port 10/100/1000Base-T Copper
 • 156-Port 1000Base-SX/LX SFP Fiber Slots
 • 13-Port 10G XFP Fiber Slots

Positioned as the Core layer switch, the XGS3-42000R serves ideally for large and medium-sized networks and IP metropolitan networks by supplying advanced intelligent and secure features and giving high performance and flexibility.

Supports 10-Gigabit Ethernet
10-Gigabit Ethernet which adopts full-duplex technology instead of low-speed, half-duplex CSMA/CD protocol, is a big leap in the evolution of Ethernet. 10-Gigabit Ethernet can be deployed in star or ring topologies. With 10-Gigabit Ethernet technology applied, the XGS3-42000R provides broad bandwidth and powerful processing capacity. It is suitable for metropolitan networks and wide area networks. Using the XGS3-42000R, users can simplify network structures and reduce cost of network construction.

Abundant IPv6 Support
The XGS3-42000R Chassis Switch supports IPv6 routing in hardware for maximum performance. As more network devices growing and the need for larger addressing and higher security become critical, the XGS3-42000R Chassis Switch will be a right product to meet the requirement.

Scalable Performance
The XGS3-42000R delivers wire-speed Gigabit and 10-Gigabit Ethernet connectivity in a highly flexible and resilitnt modular platform. With high switching capacity, the XGS3-42000R Chassis Switch supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. The scalable and flexible modular architecture supports up to 376Gps forwarding performance in a single system. The XGS3-42000R is ideal for the core layer of campuses, enterprise networks and the aggregation layer of IP metropolitan networks.

Rich Multi-Layer and Multicast Networking Protocols
The XGS3-42000R supports various Layer 2 and management networking protocols to meet the requirements of complex network constructions. It is compatible with 802.1d/w/s, 802.1Q, 802.1p, 802.3ad, 802.3x, GVRP, DHCP, SNTP and etc.
The Chassis Switch also supports IPv6 / IPv4 routing protocols including Layer 3 IP Static Routing, RIPv1/v2, OSPF, and VRRP protocols. Built-in with abundant multicast features, the XGS3-42000R supports rich L2 multicast features such as IGMPv1/v2/v3 and snooping and L3 multicast protocols such as DVMRP, PIM-DM, PIM-SM and PIM-SSM. Offering the rich application experience, the product supports Multicast VLAN Registration, multicast receive control and illegal multicast source detect functions. The XGS3-42000R Chassis Switch solution performs a cost-effective solution for today with the ability to expand as network demands grow.

Enhanced Security
PLANET XGS3-42000R offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP / UDP ports or defined typical network applications. Its protection mechanism also comprises of 802.1x port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The XGS3-42000R Net Security also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Enhanced Quality of Service
The XGS3-42000R switch fully supports DiffServ Module so users can specify a queue bandwidth on each port. WRR / SP / SWRR scheduling is also provided. The XGS3-42000R supports the port security to enable trusted CoS, DSCP, IP precedence and port priority. Users can modify packets’ DSCP and COS values so the traffic can be classified by port, VLAN, DSCP, IP precedence and ACL table. User can also modify packets’ DSCP and IP precedence values to specify different bandwidths for voice / data / video to customize different qualities of service.

Efficient and Secure Management
For efficient management, the XGS3-42000R Chassis Switch is equipped with console, WEB and SNMP management interfaces. With the built-in Web-Based management interface, the XGS3-42000R offers an easy-to-use, platform-independent management and configuration facility. The XGS3-42000R supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the XGS3-42000R can be accessed via Telnet and the console port. Moreover, the XGS3-42000R offers secure remote management by supporting SSH, SSL and SNMPv3 connection which encrypt the packet content at each session.

High Performance, High-Density, High Reliable Enterprise Backbone Switch
10-Gigabit Ethernet supported equipment has become the fundamental unit of Enterprises and Network servers. The PLANET XGS3-42000R Chassis Switch can easily provide the cost-effective, high-density and high-bandwidth required from now on. Dedicated Chassis architecture features built into the XGS3-42000R makes all modules in the platform operate together as a one much larger switch providing multiple high performance 10-Gigabit Ethernet network for backbone of enterprise, campus or Telecoms. The redundant management modules and dual power supplies provide the XGS3-42000R nonstop network service ability. Moreover, all modules are hot swappable. They can be added or exchanged without interrupting the whole system operation. The XGS3-42000R Chassis Switch is ideal to be used as a server farm switch connecting servers and perfectly suited to networking environments requiring constant access to critical business applications.

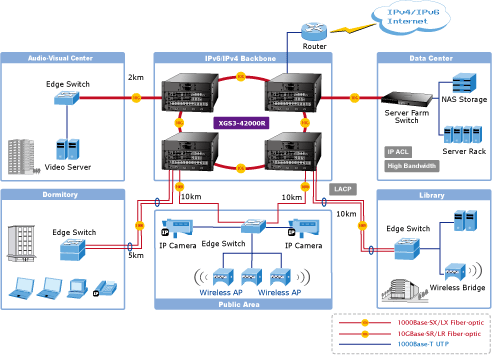

XGS3 42000R 1 s

Carrier Class Backbone Switch for the Campus and Community
For small area network communication such as in campus and community, the PLANET XGS3-42000R Chassis Switch enables an affordable and scalable network deployment. It offers a high capacity chassis platform with high quality and reliability in 10/100/1000Base-T, 1000Base-SX/LX and 10GBase-SR/LR scalable solutions that integrate easily into any large network. The XGS3-42000R provides up to 188 high-density Gigabit Ethernet ports, in which up to 156 mini-GBIC / SFP ports are available for remote uplink connectivity in a single system and provide the uplink to the edge network through 1000Base-SX/LX SFP modules. The XGS3-42000R offers a comprehensive set of modules for complex network and gives network manager the flexibility to expand large area network when needed.

Total Number of Slots
4 ( 2 Management Modules + 2 Standard Modules
or 1 Managed module + 3 Standard modules)

Max. Management Module 2 (Slot 1, Slot 2)
Max. Standard Module 3 (Slot 2,3,4)
Management Module Redundancy Yes
Number of Power Supply Bays 2
Number of FAN Trays 1, hot-pluggable

Max. 10G XFP Slot 13
Max. 10/100/1000Base-T 168
Max. 1000Base-SX/LX SFP Slot 156

XGS3-M24GX Management module / 24 10/100/1000Base-T with 12 Shared SFP Slots + 1 10G XFP Slot
XGS3-S24G Standard module / 24 10/100/1000Base-T with 12 Shared SFP slots
XGS3-S48G Standard module / 48 10/100/1000Base-T
XGS3-S48GF Standard module / 48 1000Base-SX/SL SFP slots
XGS3-S4XG Standard module / 4 10GBase-SR/LR XFP slots

Switch Processing Scheme Store-and-Forward
Backplane Bandwidth 1.2Tbps
Switching Capacity 336Gbps
Full-Mesh Switching Capacity 160Gbps
Forwarding Rate 264Mpps@64Bytes, Line speed
MAC Table 64K
VLAN Table 4K
ACL Table 16K max.

Routing Table
IPv4 Protocol: 128K max.
IPv6 Protocol: 64K max.

Layer 3 Interface 500 max.
Port Queues 8

Flow Control
IEEE 802.3x Pause Frame for Full-Duplex
Back pressure for Half-Duplex

Jumbo Frame 9Kbytes

Dimension (W x D x H) 445 x 421 x 266 mm
Relative Humidity 10~90%, non-condensing
Operating Temperature 0 ~ 50 Degree C
Power Input AC: Input 100~240V, 50~60 Hz
Power Consumption ≤400W

IP Routing Protocol
Static Route, RIPv1/v2, OSPFv2, BGPv4
Policy-Based Routing (PBR)
LPM Routing (MD5 authentication)

Multicast Routing Protocol IGMP v1 / v2 / v3, DVMRP, PIM-DM/SM, PIM-SSM
Layer 3 Protocol VRRP v1/v3, ARP, ARP Proxy
Routing Interface Per VLAN

IP Routing Protocol RIPng, OSPFv3, BGPv4+

Multicast Routing Protocol
PIM-SM/DM for IPv6
MLD for IPv6 (v1)
MLD Snooping, 6 to 4 Tunnels
Multicast receive control
Illegal multicast source detect

Layer 3 Protocol Configured Tunnels, ISATAP, CIDR

Port Configuration
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Bandwidth control on each port
Port Loopback detect

802.1Q Tagged Based VLAN, up to 4K VLAN groups
Private VLAN
Voice VLAN
MAC-based VLAN
Protocol-based VLAN

Spanning Tree Protocol
STP, IEEE 802.1D (Spanning Tree Protocol)
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
Root Guard
BPDU Guard

Link Aggregation
Static Trunk
IEEE 802.3ad LACP
Supports 16 groups of 8-Port trunk

Traffic classification based, Strict priority and WRR
8-level priority for switching
 - Port Number
 - 802.1p priority
 - DSCP/TOS field in IP Packet
Policy-based DiffServ

IGMP v1 / v2 / v3 Snooping
IGMP Proxy
IGMP Querier mode support
MLD v1/v2, MLD v1/v2 Snooping

Access Control List
Support Standard and Expanded ACL
IP-Based ACL / MAC-Based ACL
Time-Based ACL
ACL Pool can be used for QoS classification
Up to 4K entries

Support MAC+ port binding
IPv4 / IPv6 + MAC+ port binding
IPv4 / IPv6 + port binding
Support MAC filter
ARP Spoofing Prevention
ARP Scanning Prevention
IP Source Guard

IEEE 802.1x Port-Based network access control
AAA Authentication: IPv4 / IPv6 over RADIUS

RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2674 Extended Bridge MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-3411 SNMP-Frameworks-MIB

System Configuration Console, Telnet, SSH, Web Browser, SSL, SNMPv1, v2c and v3

Supports the unite for IPv4 / IPv6 HTTP and SSL
Supports the user IP security inspection for IPv4 / IPv6 SNMP
Supports MIB and TRAP
Supports IPv4 / IPv6 FTP/TFTP
Supports IPv4 / IPv6 NTP
Supports RMOM 1, 2, 3, 9 four group
Supports the RADIUS authentication for IPv4 / IPv6 telnet user name and password
Supports IPv4 / IPv6 SSH
The right configuration for users to adopt radius server’s shell management
Supports the function for timing-reset bases needs
Supports CLI, Console (RS-232), Telnet
Supports SNMPv1 / v2c / v3
Supports Security IP safety net management function:avoid unlawful landing at nonrestrictive area
Supports TACACS+

Regulation Compliance FCC Part 15 Class A, CE

Standards Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000Base-T
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1d Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP

Temperature: 0 ~ 50 Degree C
Relative Humidity: 5 ~ 90% (non-condensing)

Temperature: -10 ~ 70 Degree C
Relative Humidity: 5 ~ 90% (non-condensing)
